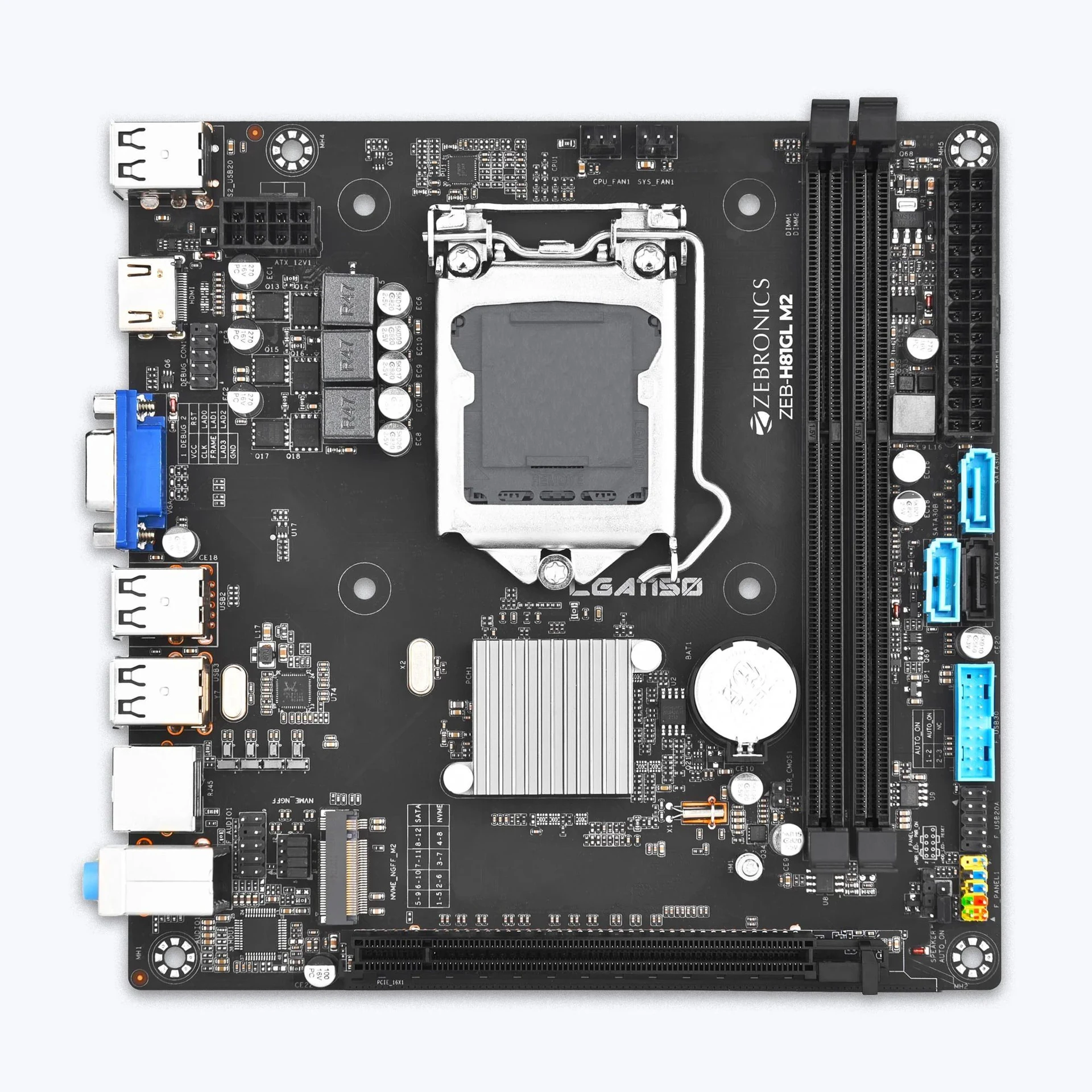

ZEBRONICS ZEB-H81M2 with PCIE M.2 / NVMe Slot (LGA 1150 Socket) LGA 1150Socket ATX Intel H81 Express Chipset DDR3 Motherboard for Desktop
Specifications Supported CPU Socket 1150 / Intel Pentium / Celeron / i3 / i5 / i7 (4th & 5th Generation) Series Processors Chipset Intel H81 Chipset Memory supported 2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory BIOS AMI BIOS I/O Interface 1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x Rj45, 1x 3-in-1 Audio Jacks Onboard interface 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB 2.0 Header, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU fan connector, 1 x SYS Fan Connector, 2 x SATA 2.0 Ports, 2 x SATA3.0 Ports , 1 x clear CMOS Connector., 1x M.2 Slot Integrated Sound With 5.1-Channel HD Audio Integrated LAN Supports RTL8106E 10/100 Mbps Ethernet LAN Expansion Slot 1 x PCI Express 2.0 x16 size slot Form factor Micro-ATX Country of Origin People's Republic of China Package contents H81M2 Motherboard 1 U SATA Cable 1 U I/O Backplate 1 U Driver Disc 1 U User Manual 1 U
₹ 1,995.00
₹5,999
(Inclusive of all taxes)
-
No Warranty
-
1 year Carry into Service Center Guarantee
-
COD Avilable
-
Returnable
-
Non cancelable
About this item
Brand Name: ZEBRONICS
Specifications
| Supported CPU | Socket 1150 / Intel Pentium / Celeron / i3 / i5 / i7 (4th & 5th Generation) Series Processors |
|
| Chipset | Intel H81 Chipset | |
| Memory supported | 2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory |
|
| BIOS | AMI BIOS | |

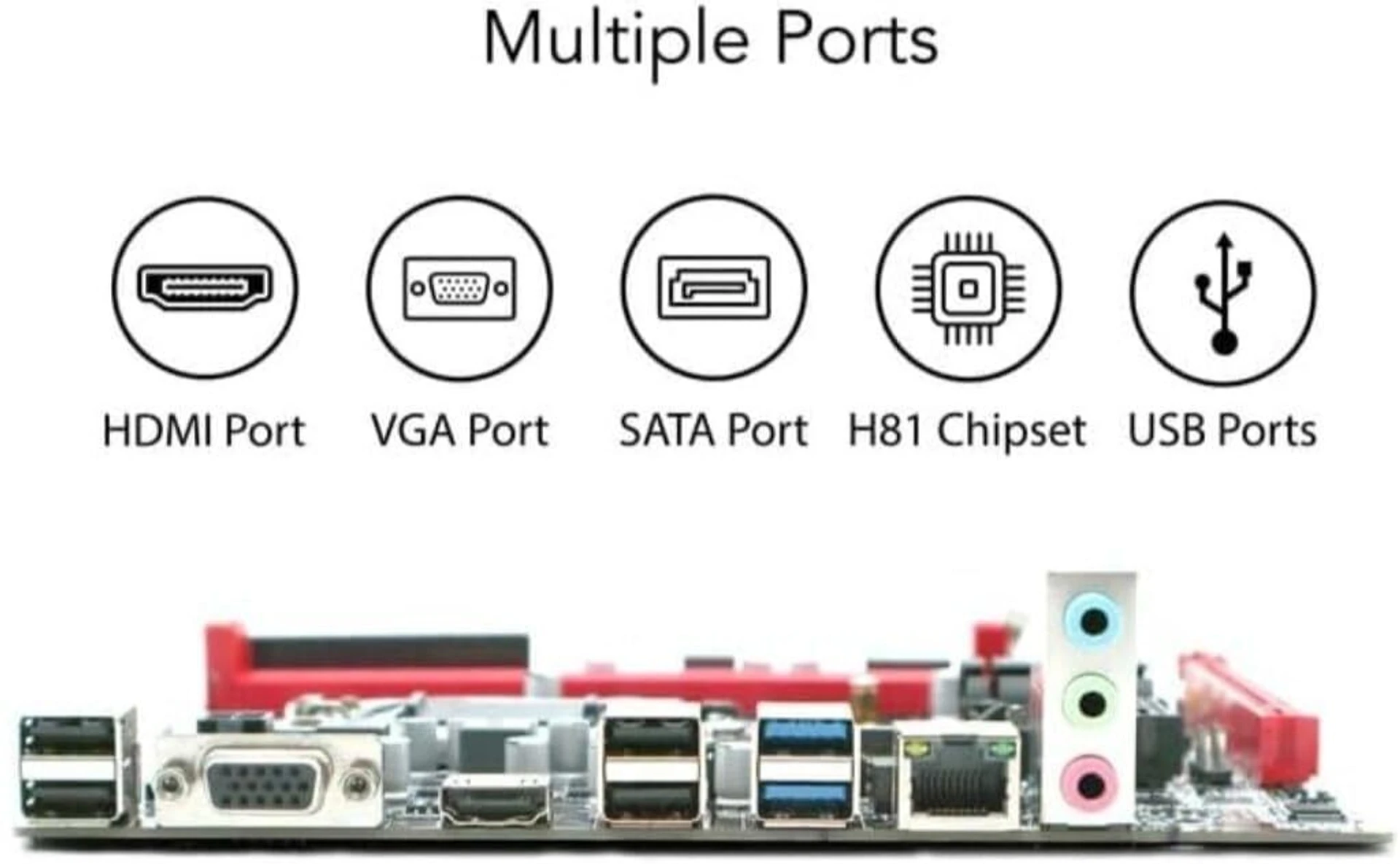

| I/O Interface | 1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x Rj45, 1x 3-in-1 Audio Jacks | |
| Onboard interface | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB 2.0 Header, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU fan connector, 1 x SYS Fan Connector, 2 x SATA 2.0 Ports, 2 x SATA3.0 Ports , 1 x clear CMOS Connector., 1x M.2 Slot |
|
| Integrated Sound | With 5.1-Channel HD Audio | |
| Integrated LAN | Supports RTL8106E 10/100 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express 2.0 x16 size slot | |
| Form factor | Micro-ATX | |
| Country of Origin | People's Republic of China | |
|
||
| H81M2 Motherboard | 1 U | |
| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U |
LEGAL METROLOGY PRODUCT INFORMATION
| Imported & Marketed by: | |
| Country of Origin: | |
| Generic Name: | Zebronics Motherboard |
| Package Contents: | H81M2 Motherboard - 1 U, SATA Cable - 1 U, I/O Backplate - 1 U, Driver Disc - U, User Manual - 1 U |
| Customer Complaints: | Telephone - 044-4000 0004 | Email - enquiry@zebronics.com |
ZEBRONICS ZEB-H81M2 with PCIE M.2 / NVMe Slot (LGA 1150 Socket) LGA 1150Socket ATX Intel H81 Express Chipset DDR3 Motherboard for Desktop
